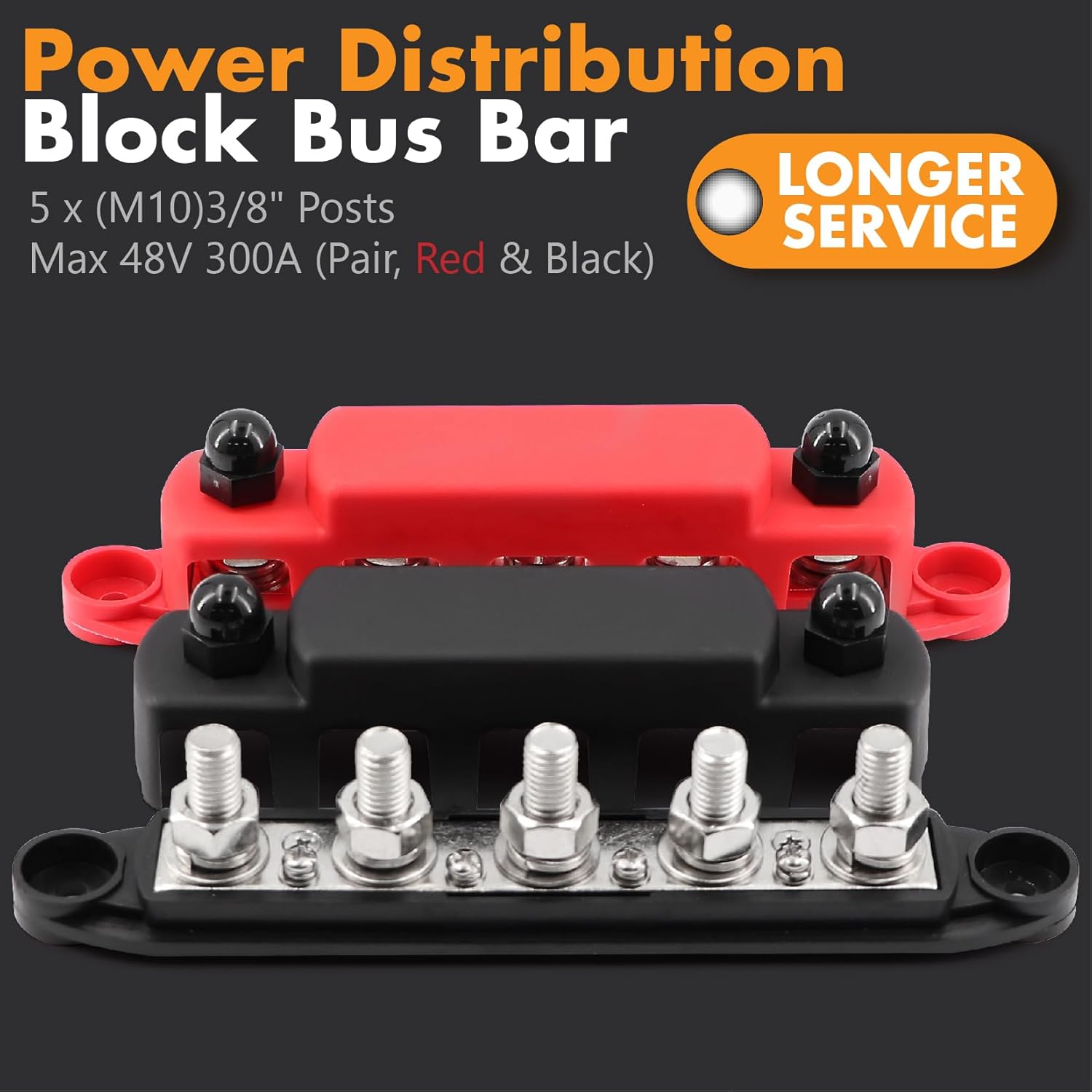

300A Bus Bar 5 Post, 3/8" Stud Heavy Duty Power Distribution Block with Cover, for Solar Marine RV Van Camper Car Audio, Includes Copper Lugs & Heat Shrink (Red & Black)
4.9 (93 items)
Limited Time SaleUS$26.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 225377024 | Release Date | 2026/05/09 | List Price | US$17.60 | Model Number | 225377024 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

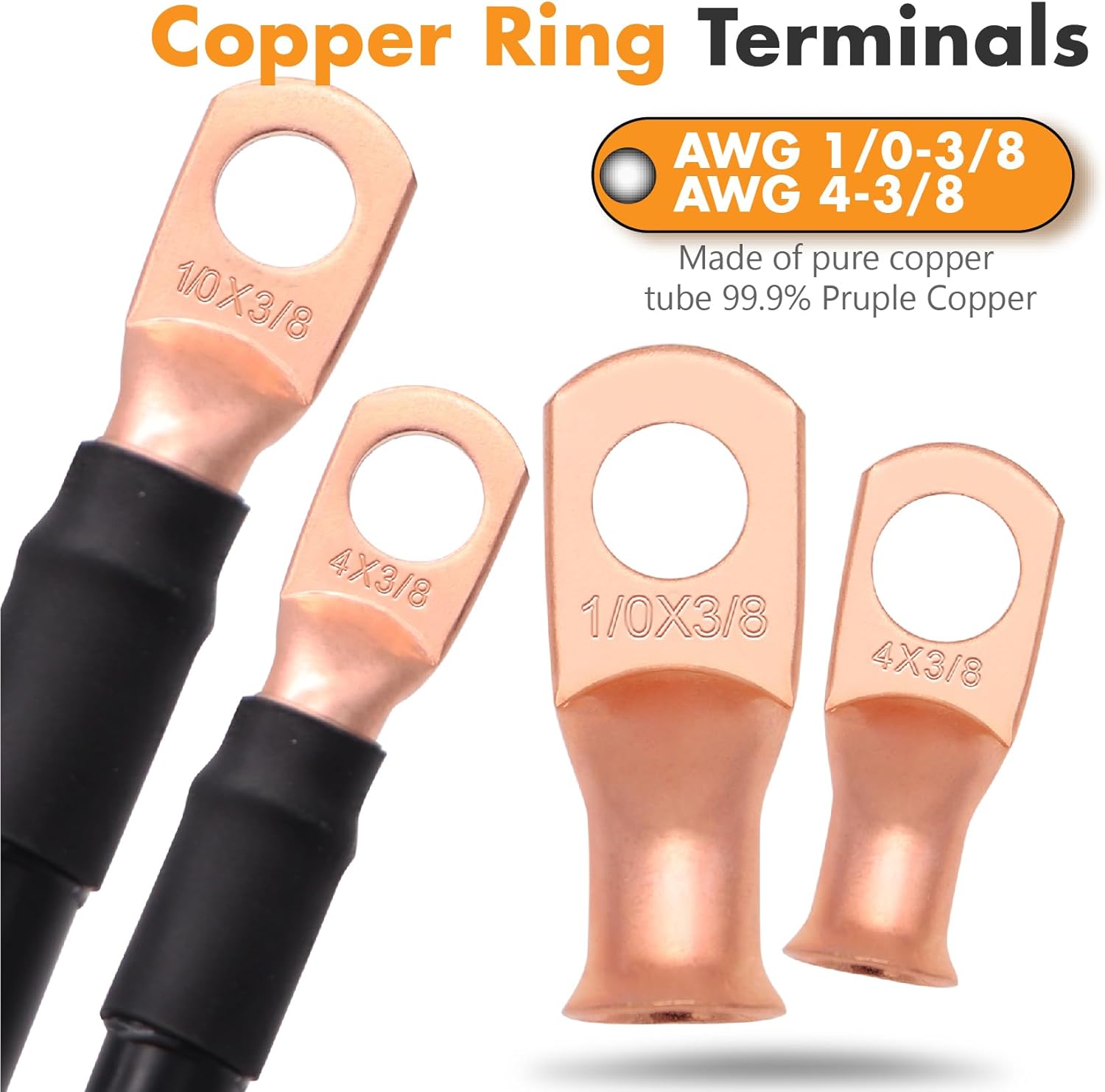

- Package Includes：300A M10 Stud Bus Bar + 4pcs 1/0 AWG 3/8" Copper Cable Lugs + 10pcs 4 AWG 3/8" Copper Cable Lugs + 14pcs 3:1 Adhesive Lined Heat Shrink Tubing.
- Protect Cover & Nuts：Each power busbar will come with a protect cover and two nuts, which helps to shelter as much exposed area as possible to reduce the risks of accidental contact and prevent short circuit, makes the circuit safer.
- Durable and Safe ：The base of the battery terminal block is made of glass fiber reinforced nylon, the nuts and screws are made of stainless steel, and the gasket is made of copper, stable in structure. Each bus bar includes a cover to protect connections from protect against damage and corrosion. The insulating nylon base is flame retardant, giving you peace of mind when using it.
- Easy to Install: you just need to use the screws to fix the battery terminal distribution block in their respective positions, then use wiring on the screw, tighten the nut to fix, easy to operate without complicated installation steps

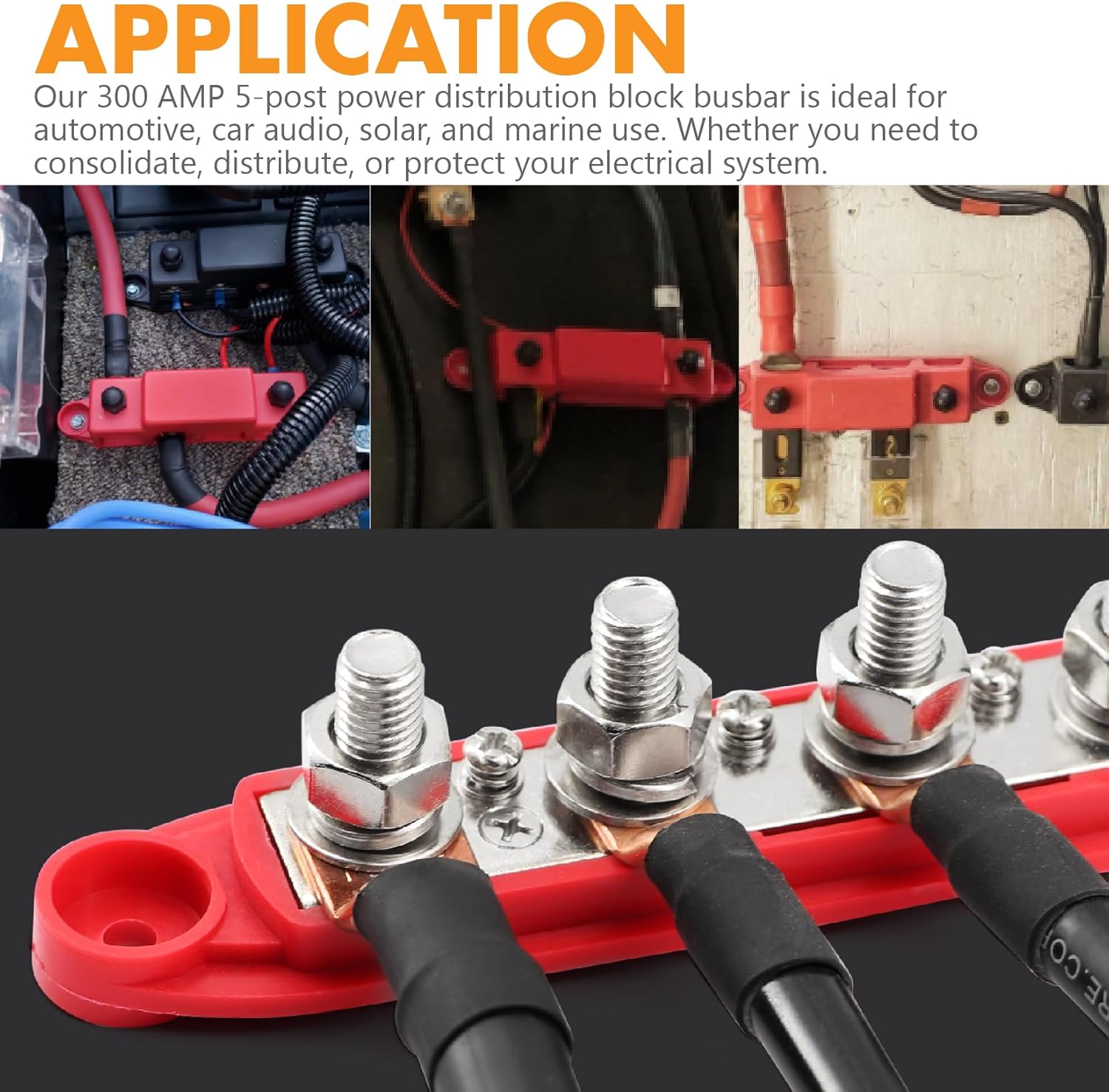

- Wide Application: This 5 post busbar is an excellent circuit collection wire Harness in the car, RV, yacht, caravan, and ship power system. Maximum amplifier per circuit: determined by the connected wires. Maximum working voltage is DC 48V & up to 300 Amps.
| ASIN | B0DGCW1NNW |
|---|---|
| Color | Black |
| Model | 0403a67b-ea72-46e9-800d-6e3574d6a620 |
| Pitch | 0.38 Inches |
| Brand Name | Taxutor |
| Unit Count | 1.0 Count |
| Part Number | ZZ-FUS-20240127 |
| Manufacturer | Taxutor |
| Material Type | Nylon |
| Mounting Type | Screw Mount |
| Connector Type | Screw |
| Current Rating | 300 Amps |
| Number Of Poles | 5 |
| Number Of Contacts | 5 |
| Number of Positions | 5 |
